AllPondSolutions range of pressurised pond filters with built-in UV clarifiers are designed to be continuously pressurised by your pond pump, maintaining excellent water quality for healthy fishkeeping.

Water can be fed directly from your pond pump through to the filter container and subsequently the outlet, continuously under pressure. The water outlet can be located higher than the actual filter body, making it easier to disguise around the pond - particularly useful if incorporating a waterfall!

Supplied with a fantastic new rotating cleaning handle on the head, maintaining the pressurised filter is now even easier! The unit will inform you when it is in need of a detailed clean using a small float, which pops-out of the head of the unit when required.

By simply turning the handle you can rinse clean the interior sponge, reducing the need to dis-assemble! Once rinsed, a separate outlet can be opened to discharge any dirty water until it runs clean and basic maintenance is complete.

Each unit is supplied with a built-in UV light, which effectively prevents growth of algae and eliminates harmful micro-organisms and parasites which may cause fish diseases.

Specification

• Decorative Ponds: up to 5000 Litres
• Ponds with a small mix of fish: up to 3000 Litres
• Ponds with a small mix of koi: up to 1500 Litres
• Maximum Pump Flow rate: 6000L/h
• Power of UV-Clarifier: 11W
• Voltage: 220-240v
• Cable Length: 5m

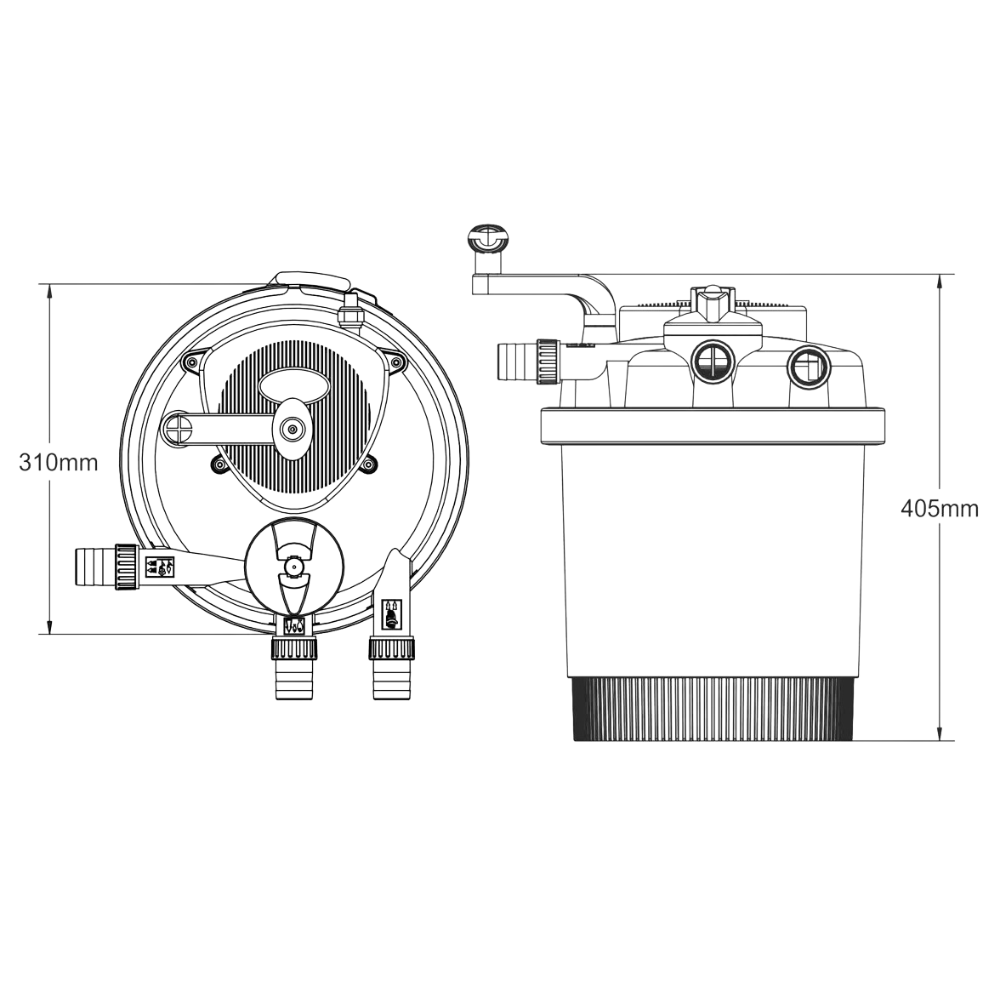

• Dimensions: 310 x 310 x 405 (mm) (L x W x H)
• Filter Compartment Volume: 16 Litres
• 3 x stepped hosetails fits: 20, 25 & 32mm
• Free 24 Month Warranty
• FPP-3500 Pump
• Model: FPP-3500
• Max Height: 250cm
• Flow Rate: 3500L/h
• Outlet fits 25mm Flexible Hose (multi-stage hosetail also supplied can fit 20-38mm)
• Dimensions: 267 x 223 x 132mm
• 10m of Cable
• Watt: 42w
• Voltage: 220-240V
• Free 12 Months Warranty

Filtration

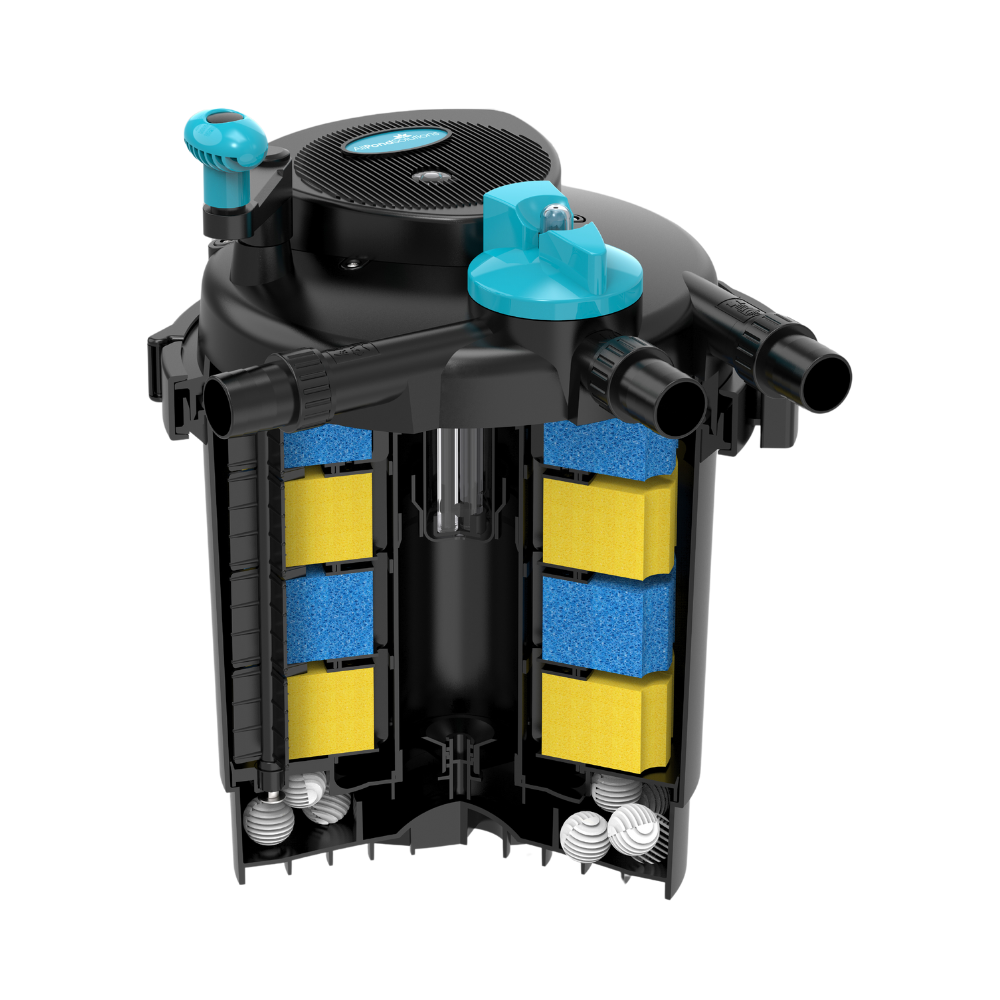

Water passes through the PFC-5000 in the following order
1) Pond water flows into the PFC-5000 via your pond pump
2) Initial filtration begins by removing large particles through a mixture of coarse and fine filter foams (mechanical filtration)
3) Then the water passes across bio balls that harbour good bacteria across large surface area (biological filtration)
4) Lastly the exiting water is exposed to a 11w UV steriliser capable of reducing harmful bacteria and algae
5) Clean, clear and healthy water exits your PFC-5000 and returns to your pond.
Please note: The diagram above is only an example of the water route through the system and does not exactly match this filters features.

Features

• Each unit is supplied with 4 small filter foams

  2x fine yellow foams (small)
• 2x coarse blue foams (small)
• Includes bio-balls (loose; no cage)
• Pressurized filter allows exiting water to run up-hill max. 3m
• Biological and mechanical filter chambers for more efficient removal of dissolved and solid waste
• Simple quick handle cleaning system for easy maintenance (no need to open and clean foams all the time)
• Enables rapid growth of aerobic bacteria resulting in removal of lethal ammonia and nitrite
• Able to cope with higher water flows compared to traditional gravity filters
• Complete with inlet and outlet hose adapters

All Pond Solutions FPP-3500 L/H Fountain Pump
The AllPondSolutions 3500 L/H Fountain Pond Pump is supplied with a vast selection of alternate fountain heads and will give any pond that professional touch. This pump can either be used to pump water directly into your filtration system or alternatively into a water feature, as well as into the included fountain system.

Pond hose and clips are supplied as follows;

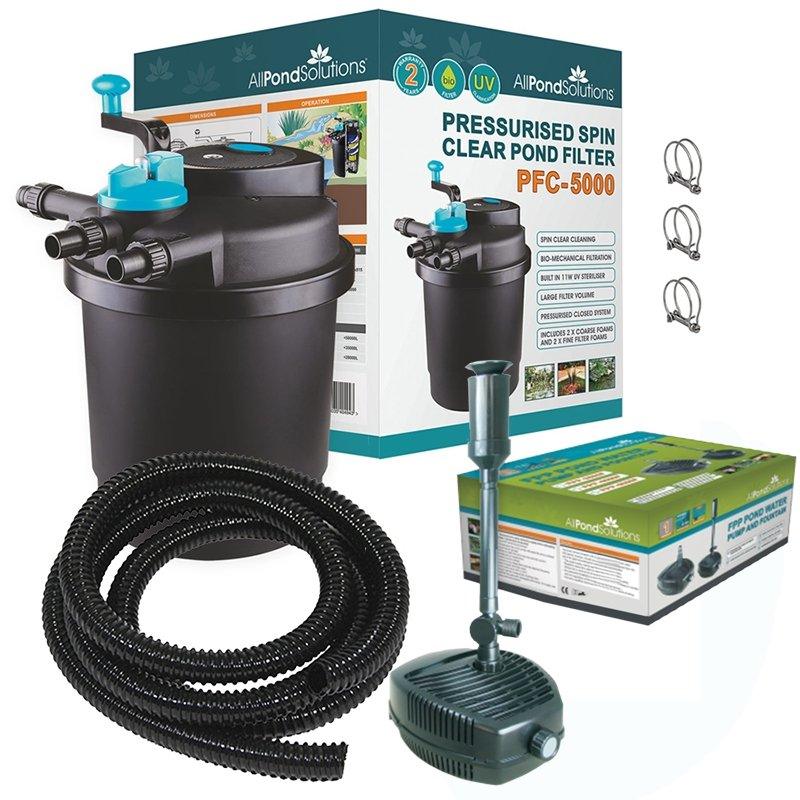

- PFC-5000 complete kit = 25mm pond hose x 5 metres + 25mm double wire clips x 3
