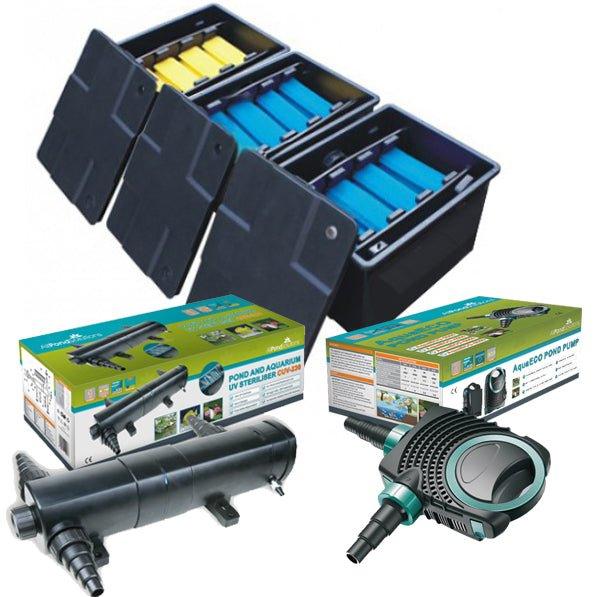

The AllPondSolutions 18000L Koi Pond Triple Bay Filter System is a complete box filtration system designed to run pond water through a variety of Filter Media and fine and coarse foams to keep your pond looking crystal clear.

This complete system includes the CUV-236 36w Sterilizer which attaches to the side of the CBF-350C filter box (or can be positioned close by) and the AQUAECO-10000 10000 litres per hour pond pump

Filter Operation

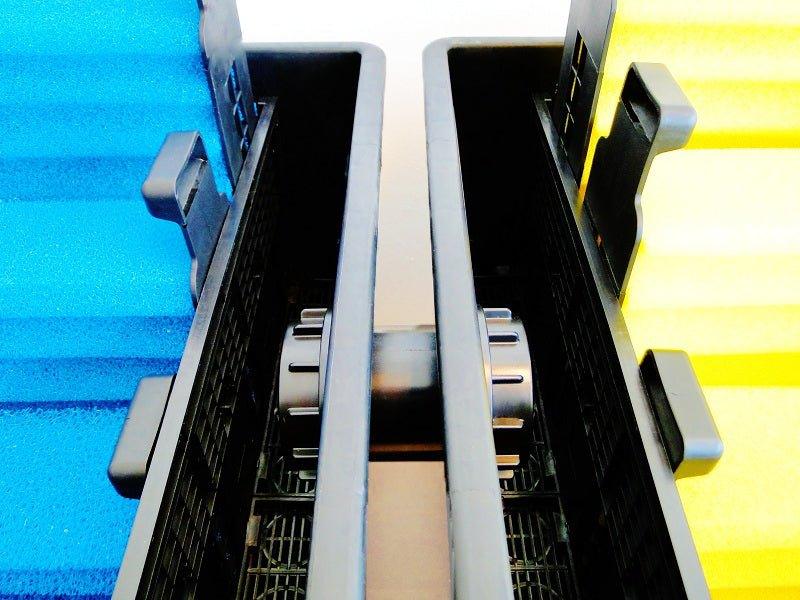

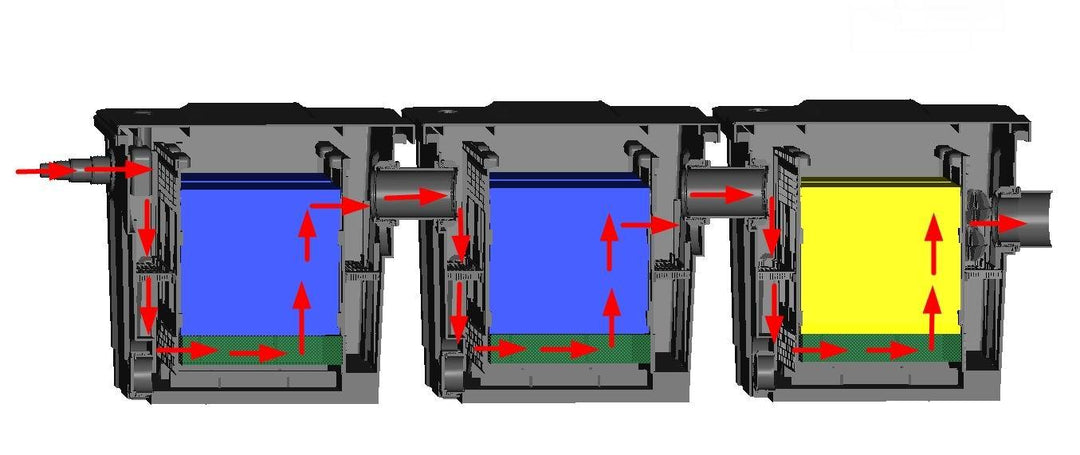

The filtration system uses a variety of filter media distributed amongst three separate bays allowing you to filter high volumes of water.

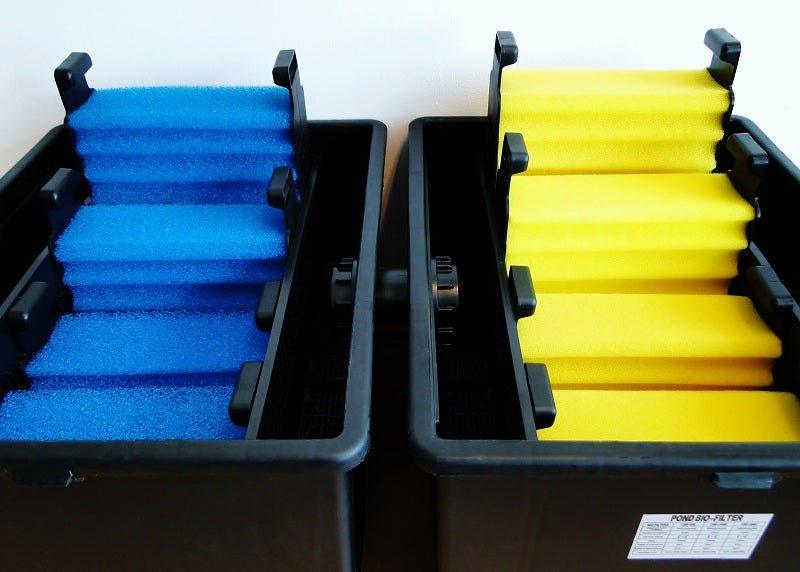

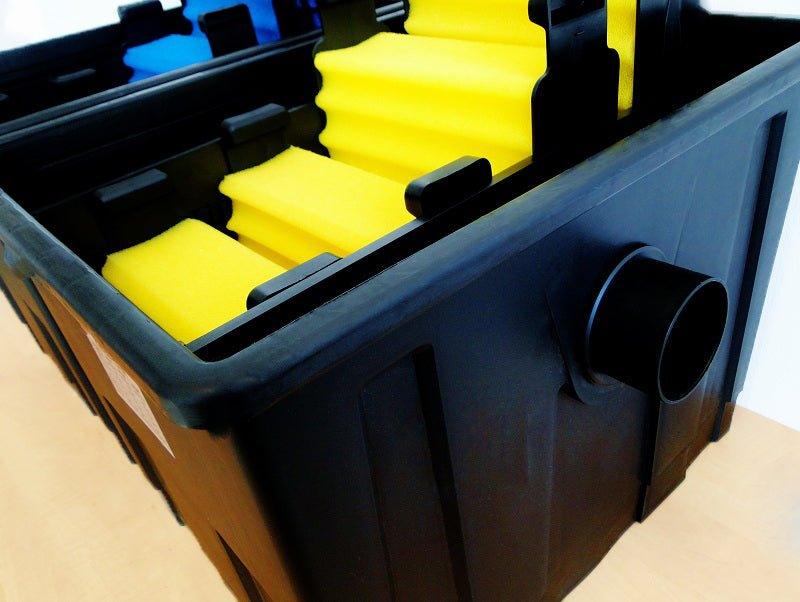

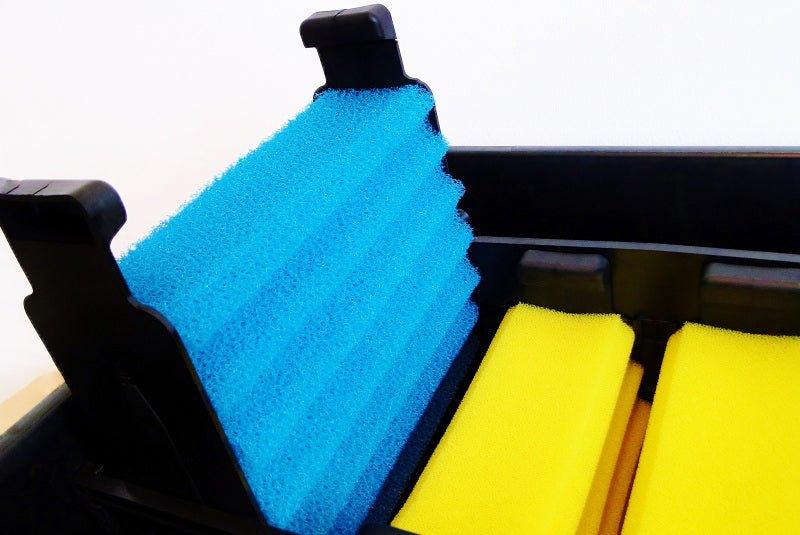

Each of the 3 bay's has 4 different stages of filtration (see below) The first two bays come complete with eight (8) Blue Coarse Filter Foam's, the remaining bay has four (4) Yellow Fine Filter Foam's included.

1) Firstly, the water passes through the filter media bay (stocked with media of your choice)

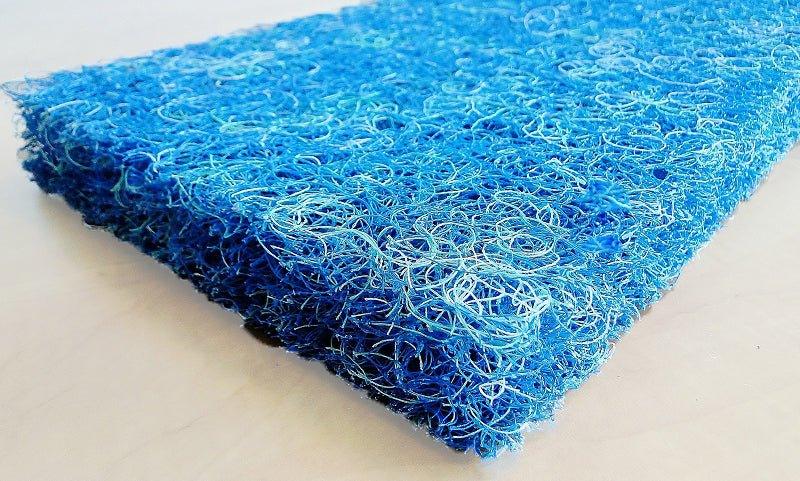

2) Then the water is guided through high-quality Japanese matting;
3) After matting, the water will flow through the filter foams provided;
4) The last section of each filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

This model comes complete with an additional cleaning tool that allows you to rinse through your foams without even removing them from your filter box;

Features

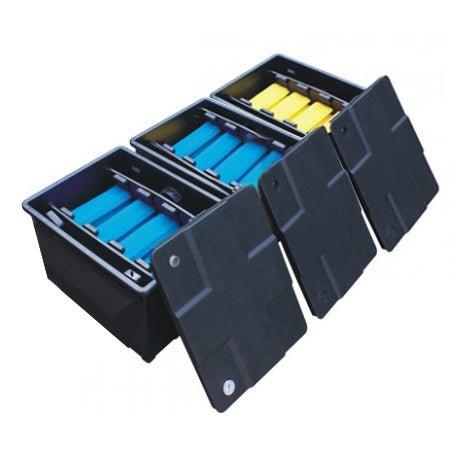

• Filter Bays x 3
• Clip-on Lids x 3 for Easy Access to each Filter Bay

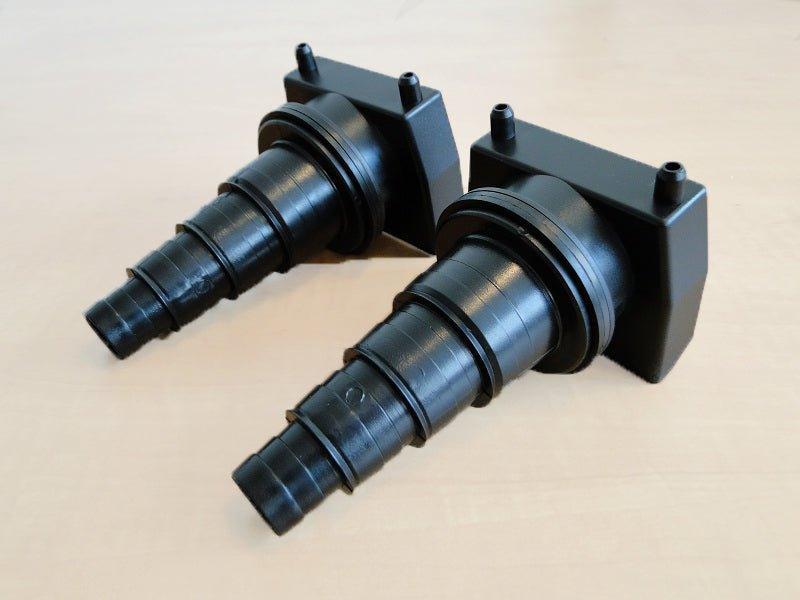

• 2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm

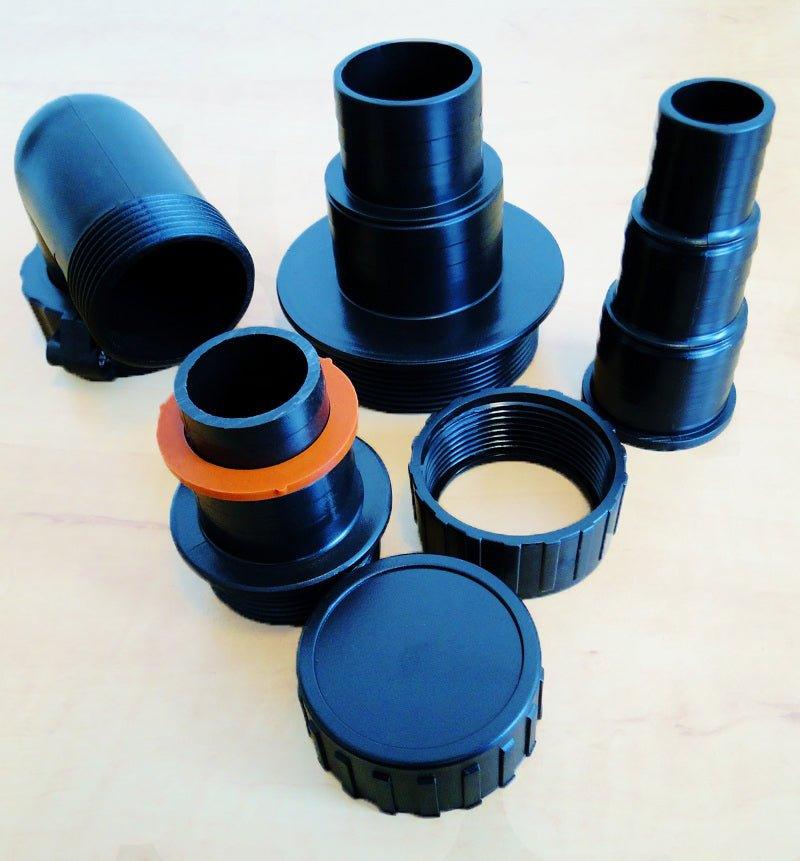

• 2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe

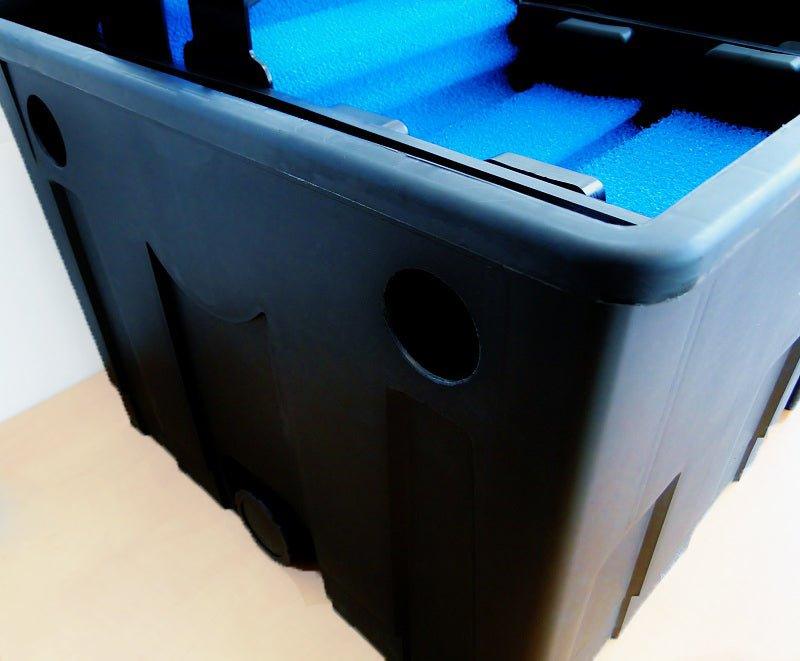

• 3 x Waste Outlet for each Bay (Simple Draining of Water Waste)

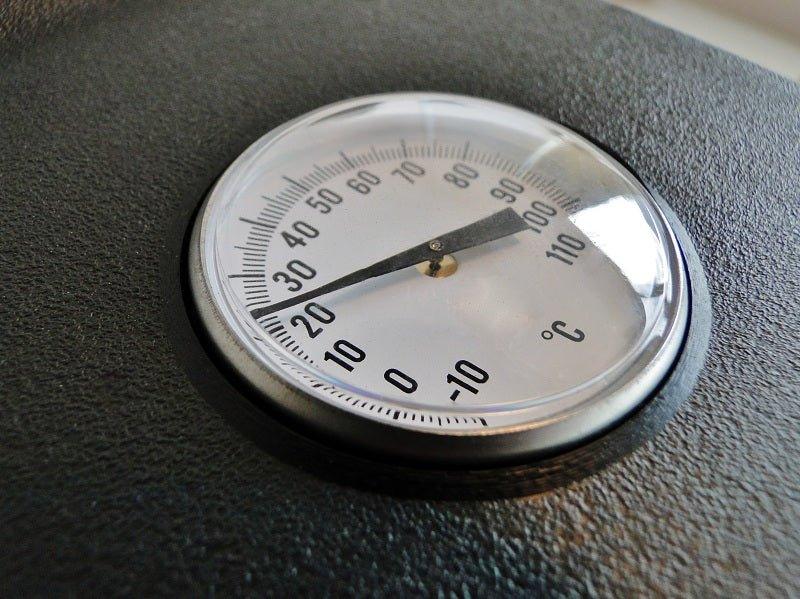

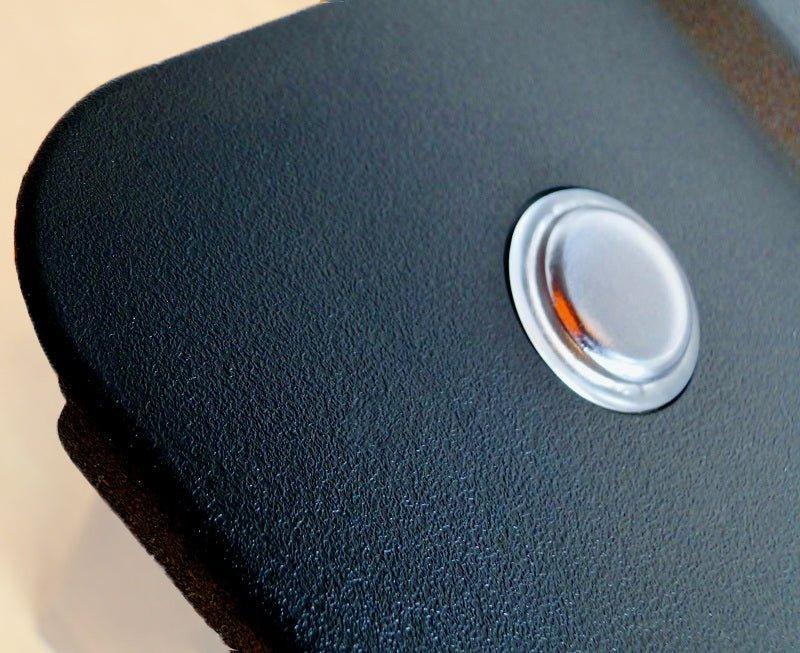

• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockage / Cleaning)

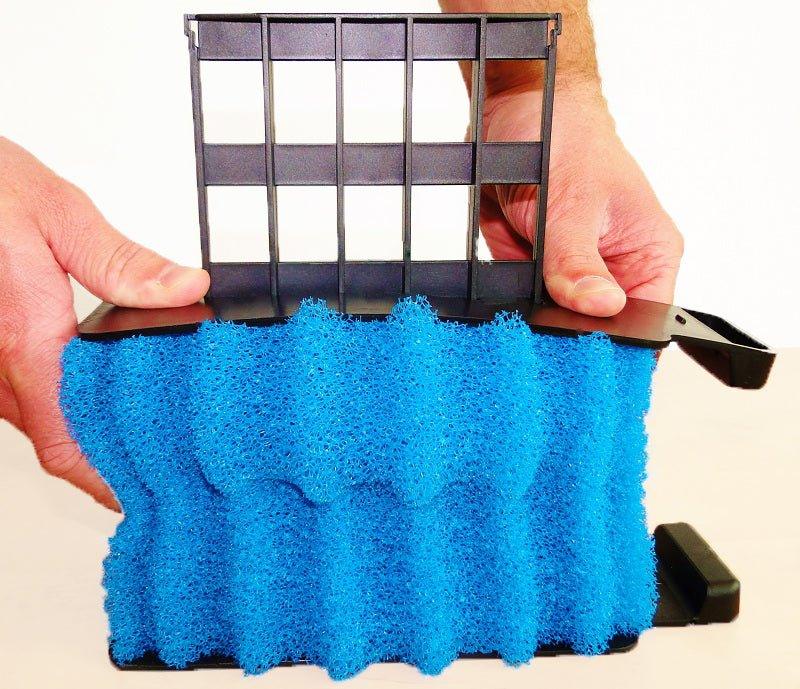

• 8 x Blue Coarse Filter Foams
• 4 x Yellow Fine Filter Foams

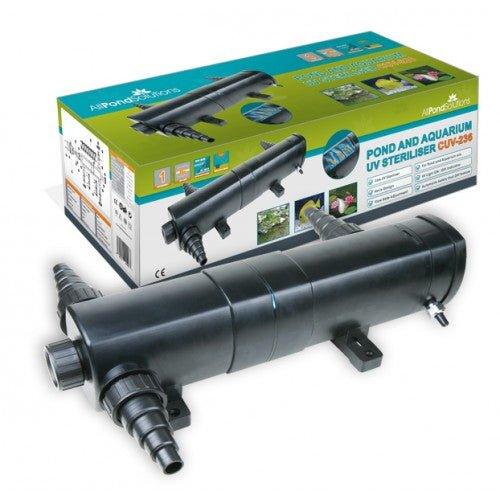

CUV-236 Pond Steriliser

• CUV-236 Centre Panel Lights-up to Ensure that the UV is Operational
• Three Stepped Hosetails Supplied
• Wall Mounting Bracket Attached to the UV Light complete with screws
• CUV-236 Easy Clip-release for Bulb / Quartz Glass Maintenance
• CUV-236 Advanced Thermal Heat Protection Built-in

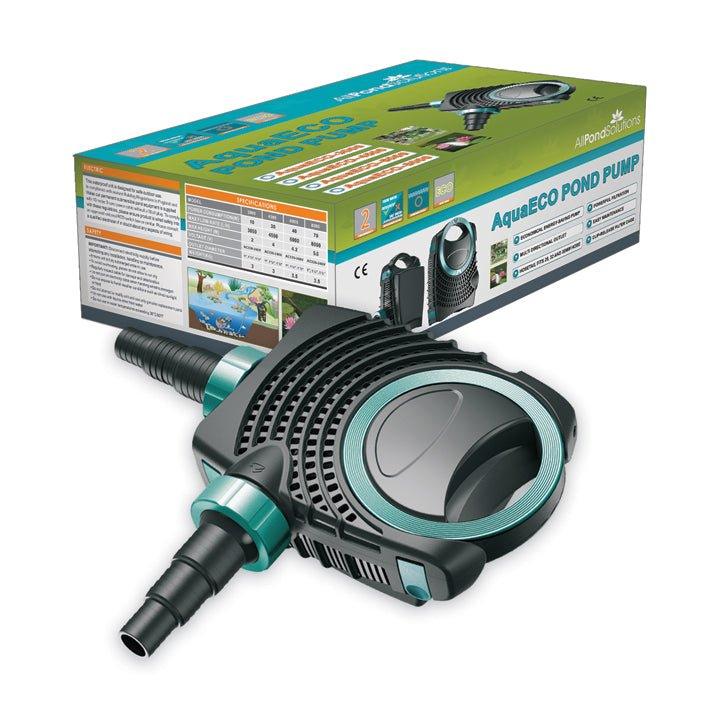

AQUAECO-10000 Pond Pump

• High water flow with low energy consumption for energy conscious and environmentally friendly operation.
• Designed to pump dirty water 24/7
• High-quality impeller and ceramic shaft for problem free transport of dirt particles.
• Robust filter housing minimises the risk of blockage and makes installation and maintenance easy.
• Unique cage design incorporating convenient handle for easy placement / retrieval
• Cage design allows for easy access for quick hassle free maintenance
• Inlet / Outlets can be angled to your requirements for a simple installation
• Inlet / Outlet hosetail connector: 25/32/38mm
• Power Cable: 10m
