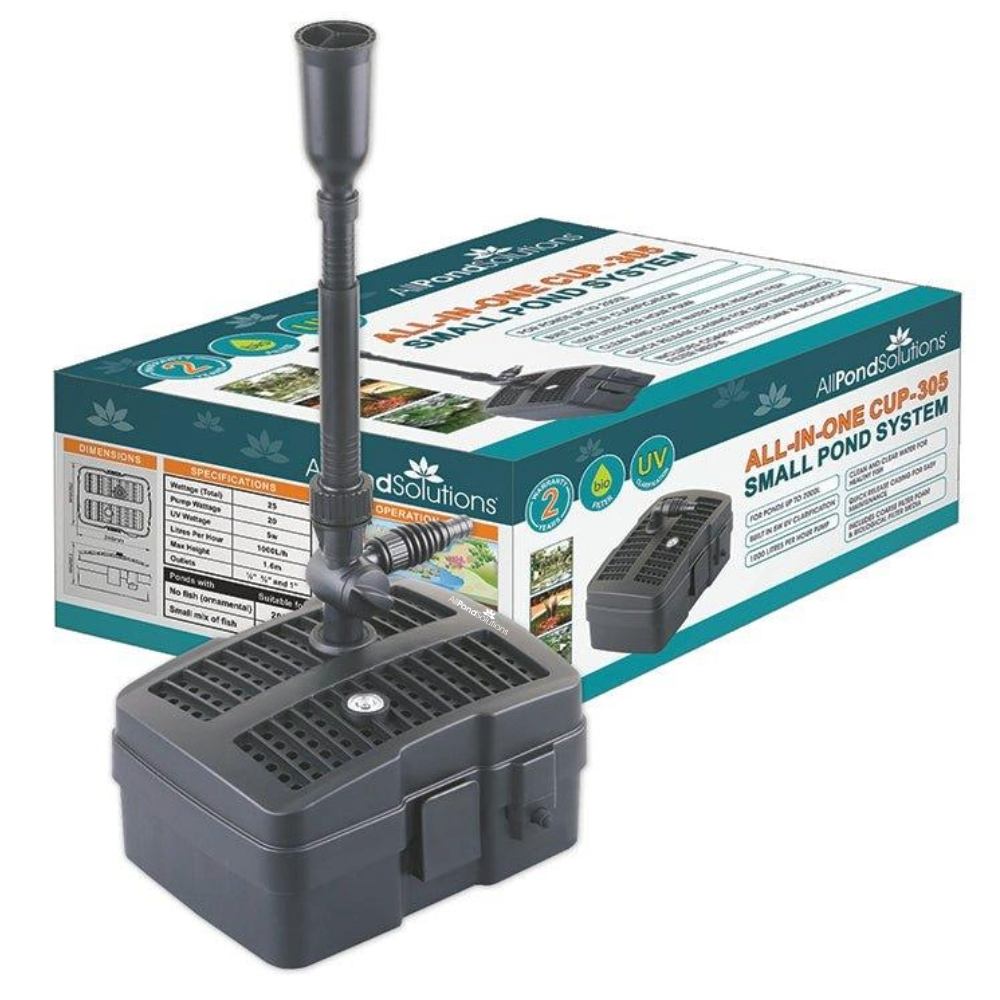

The AllPondSolutions All-in-One CUP-305 system combines everything required to run a healthy algae-free small sized pond. Designed as a single smart unit with a single power cable it allows for a much easier installation compared to a standard pond set up.

The CUP-305 includes a built-in 5w UVC Lamp and filtration system combined with a 1000 litres per hour pump eliminating the need to purchase an external filtration system, which can be difficult to integrate around the landscaping of a small pond.

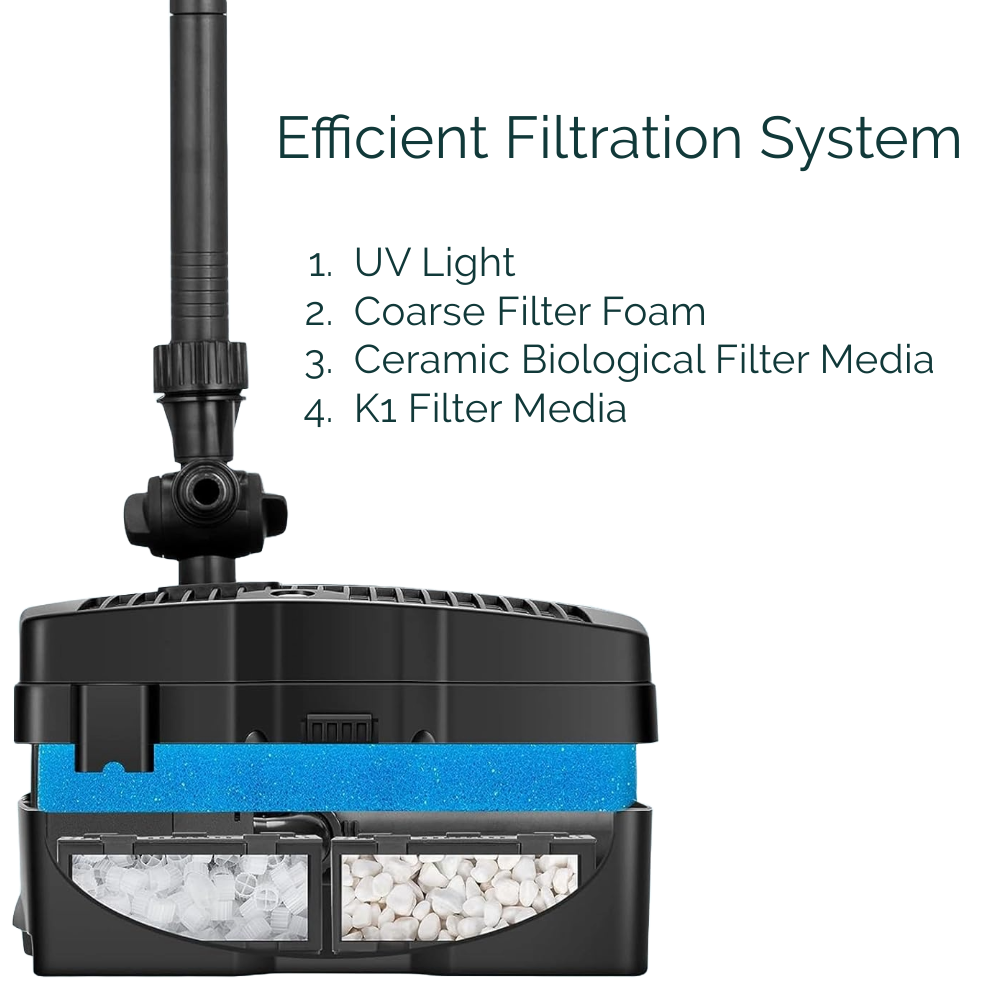

The included filtration media includes a large coarse filter foam that water must pass through first and also two filter media compartments, one is filled with ceramic biological filter media and one with K1 filter media. Alternatively, you could change the included media inside these compartments for an alternative pond filter media of your choice.

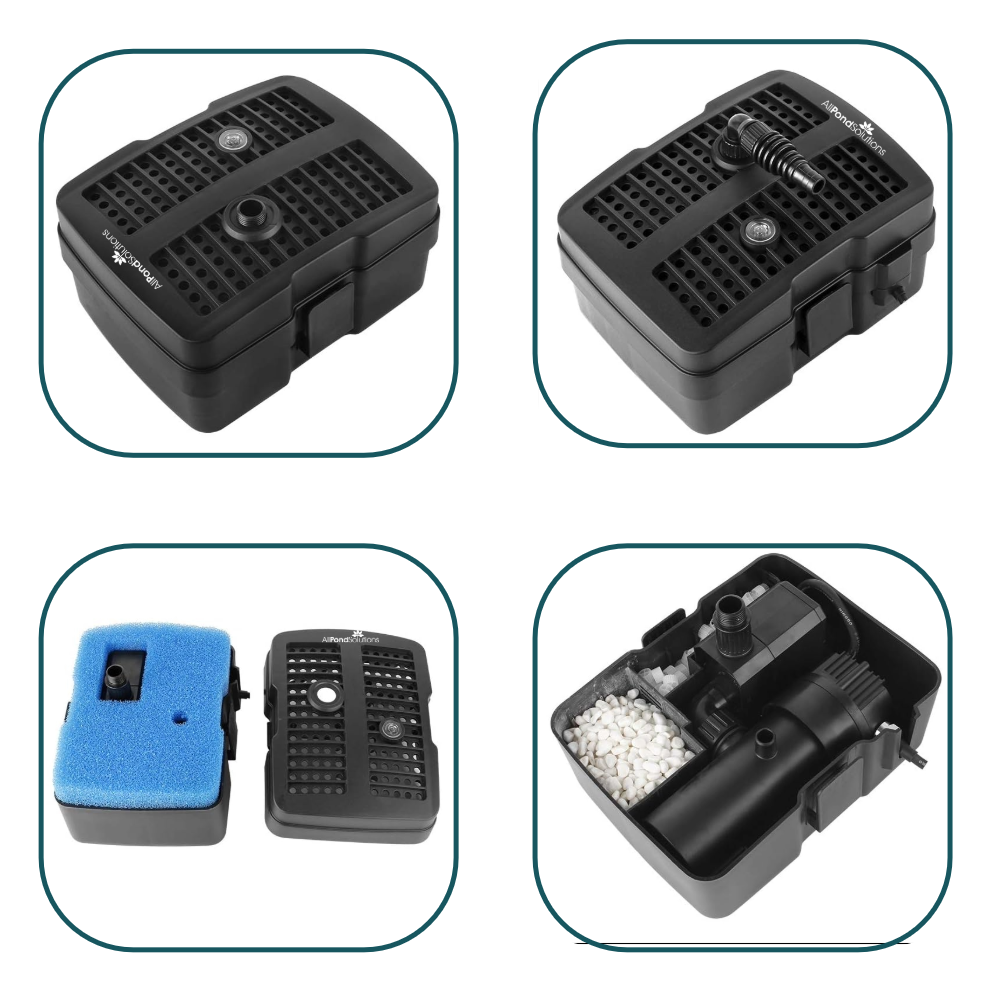

Access to the inside of the CUP-305 is extremely easy thanks to the two clips positioned on either side of the unit. Once these are unclipped you have full access to all filter media areas for cleaning and maintenance. The pump and steriliser are easily removed, allowing these parts to be cleaned completely clear of the CUP-305 base.

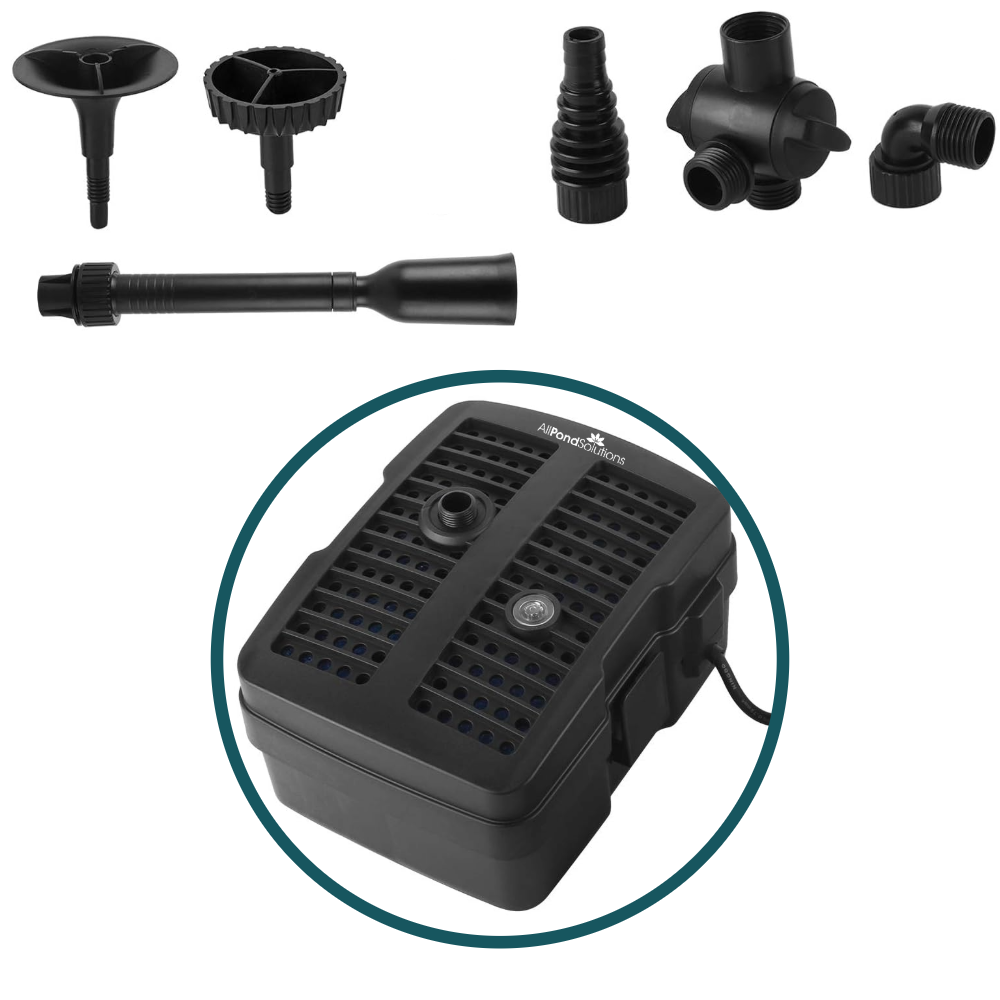

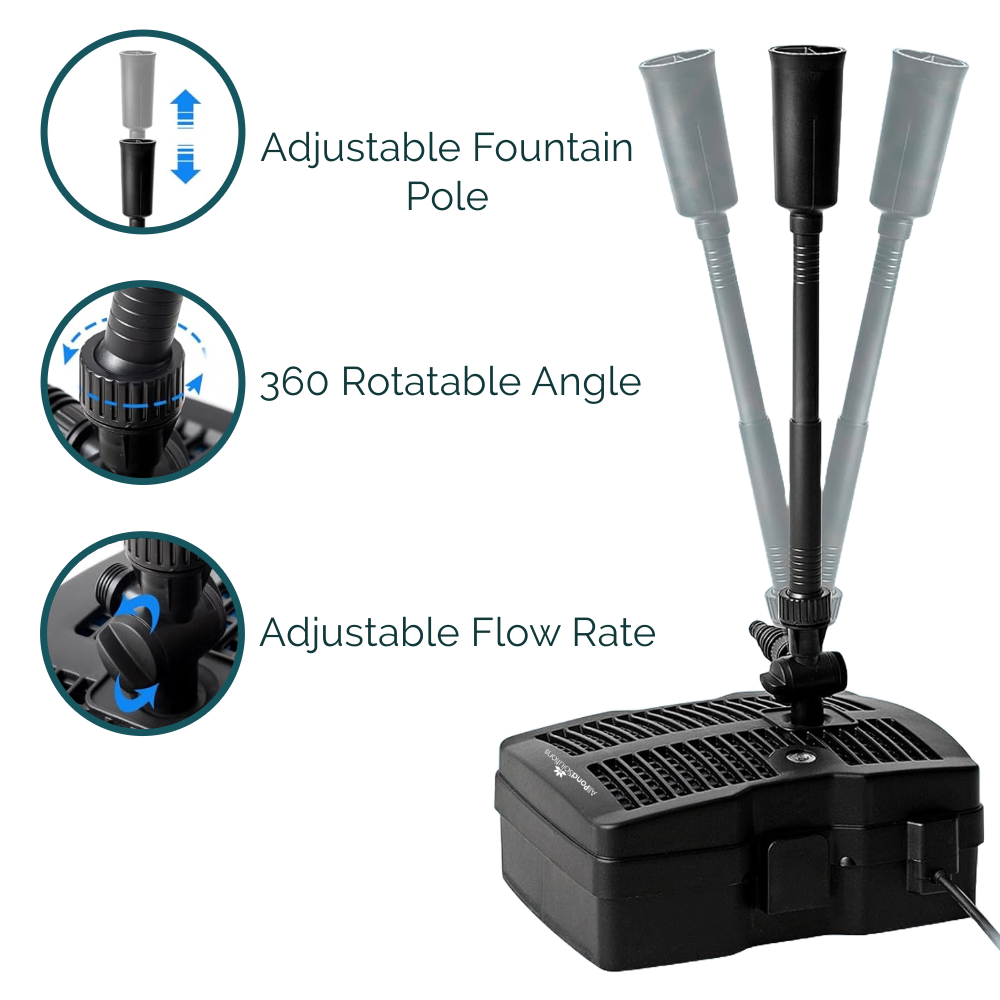

This system is also supplied with a high-quality fountain attachment set comprising of three different fountain attachments, ideal for a variety of displays in your pond. The set also includes a splitter, enabling you to divert water to a waterfall, for example, and both the splitter and fountain are flow-rate adjustable. This gives you total control over the strength of your fountain and the volume of water diverted from the unit.

Specification

• Flow rate: 1000L/h
• Height Max: 160cm
• Max Depth of Use: 150cm / 78
• Max Depth for Fountain Use: 525mm / 20

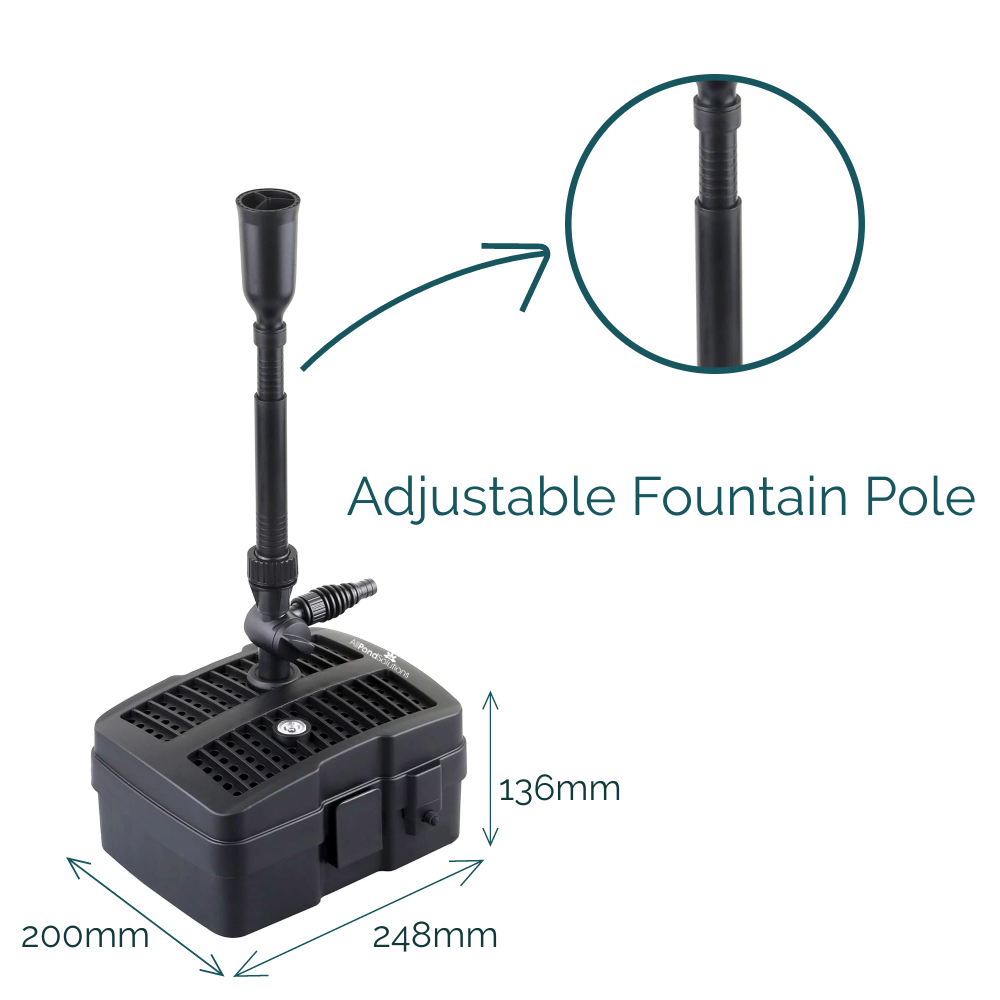

• Dimensions: 248 x 200 x 136mm (L x W x H)
• Cable Length: 10M
• Pump power: 19w
• UV power: 5w
• Voltage: 220-240V
• Outlet fits:12, 20 and 25mm hose / 0.5, 0.75 and 1
• For use in ponds up to 2000L (Ornamental)
• For use in ponds up to 1000L (Small mix of fish)
• Free 24 Month Warranty

Operation
1)Pond water is pulled through the casing of the system directly through the coarse filter foam.
2)Before entering the UV the water must pass through the ceramic biological media baskets.
3)The water is then passed over the 5w UV Light
4)Leaves via the supplied fountain and / or external feature, or simply back into your pond.

Features

• For use in ponds up to 2000L (Ornamental)
• For use in ponds up to 1000L (Small mix of fish)
• Water pump Included
• UV sterilizer Included
• Pond filter Included
• Spare impeller / shaft replacement included
• Water fountain set included (3 different heads)
• Water fountain has angle-adjustment Feature
• Coarse filter foam, ceramic stones and K1 media included
• Adjustable flow-rate T-connector included

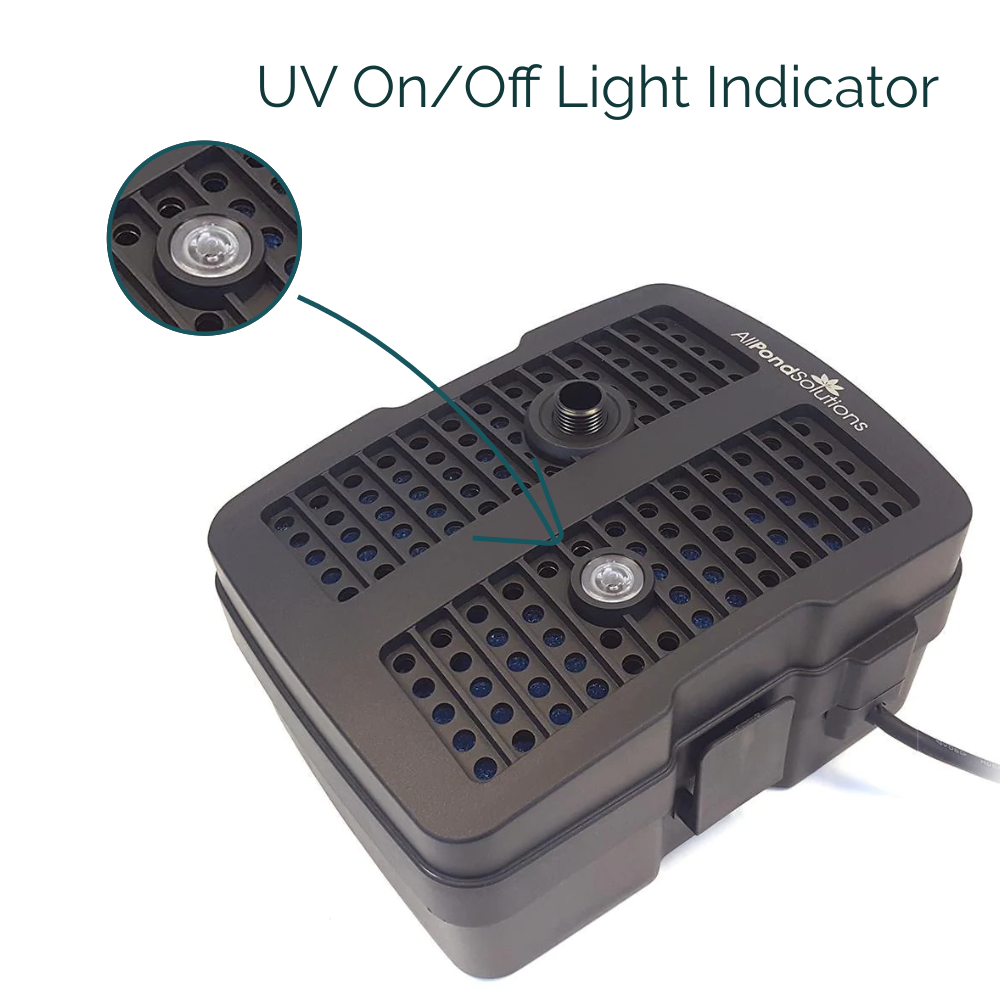

• UV On/Off light indicator on top of casing
• Case guards stop debris larger than 7mm entering the unit.
• Instruction manual in English, French, German, Spanish and Italian
