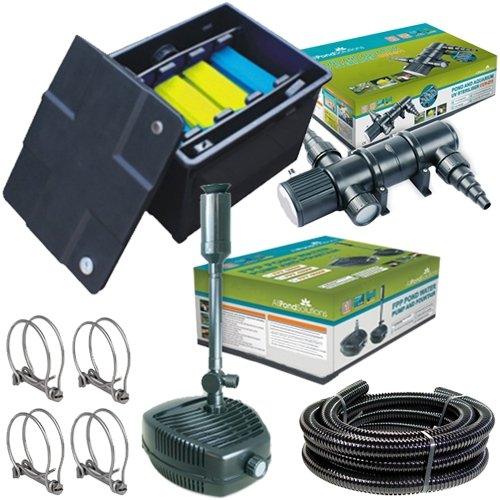

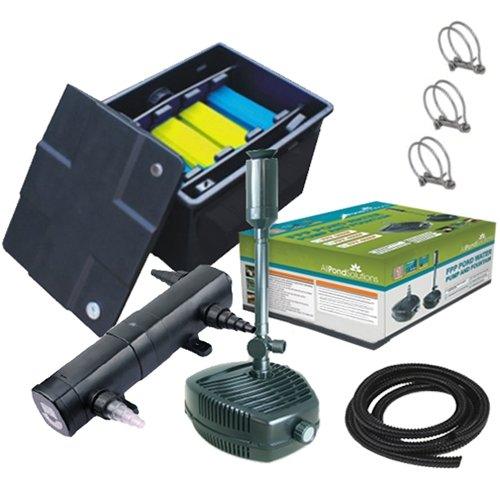

The AllPondSolutions 6000L Koi Pond Filter System is a complete box filtration system designed to run pond water through a variety of filter media and fine and coarse foams to keep your pond looking crystal clear. The full pond kit also includes FREE 3x double wire clips and 5 metres of 20mm flexible hosing.

This complete system includes the CUV-218 18w sterilizer which attaches to the side of the CBF-350 filter box (or can be positioned close by) and the FPP 3500 litres per hour pond pump

Filter Operation

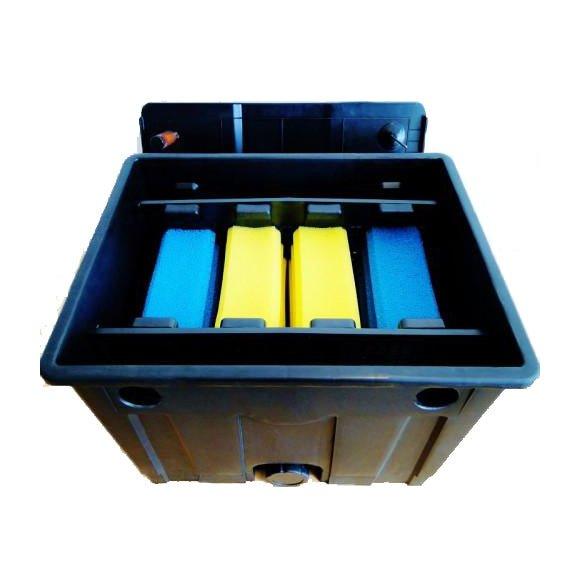

The filtration system uses a variety of filter media distributed amongst the different compartments inside its filter bay, allowing you to filter high volumes of water. This single bay filter system has two (2) blue coarse filter foams and two (2) yellow fine filter foams included.

The filter has four different stages of filtration:

1) Firstly, the water passes through the filter media bay (stocked with media of your choice)
2) Then the water is guided through high-quality Japanese matting;
3) After matting, the water will flow through the filter foams provided;
4) The last section of the filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

Features

• 1 x Filter Box
• 1 x Clip-on Lid
• 1 x Japanese Matting (Dimensions: 440 x 230mm 40mm Thickness / 17.3" x 9.1" x 1.6" Thickness)
• 1 x Waste Pipe (Easy Draining of Water Waste)
• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockages / Cleaning)
• 2 x Blue Foams (Coarse Grade Foam)
• 2 x Yellow Foams (Fine Grade Foam)
• 20 x 1.75"/ 44mm¬†Bio Balls (Approx)

CUV-218

• CUV-218 Centre Panel Lights-up to Ensure that the UV is Operational
• Three Stepped Hosetails Supplied
• Wall Mounting Bracket Attached to the UV Light complete with Screws
• CUV-218 Easy Clip-release for Bulb / Quartz Glass Maintenance
• CUV-218 Advanced Thermal Heat Protection Built-in

Features

FPP 3500 Pond Pump

• Max Height: 250cm
• Flow Rate: 3500L/h
• Outlet fits 25mm Flexible Hose (multi-stage hosetail also supplied can fit 20-38mm)
• Dimensions: 267 x 223 x 132mm
• 10m of Cable
• Watt: 42w
• Voltage: 220-240V
